Marmox Showerlay Offset Drain Wet Room Tray with Grate & Drain
Marmox Showerlay Offset Drain Wet Room Tray with Grate & Drain

Marmox Showerlay Offset Drain Wet Room Tray with Grate & Drain

Non-Stock 2-4 Working Days

Product Options:

Description

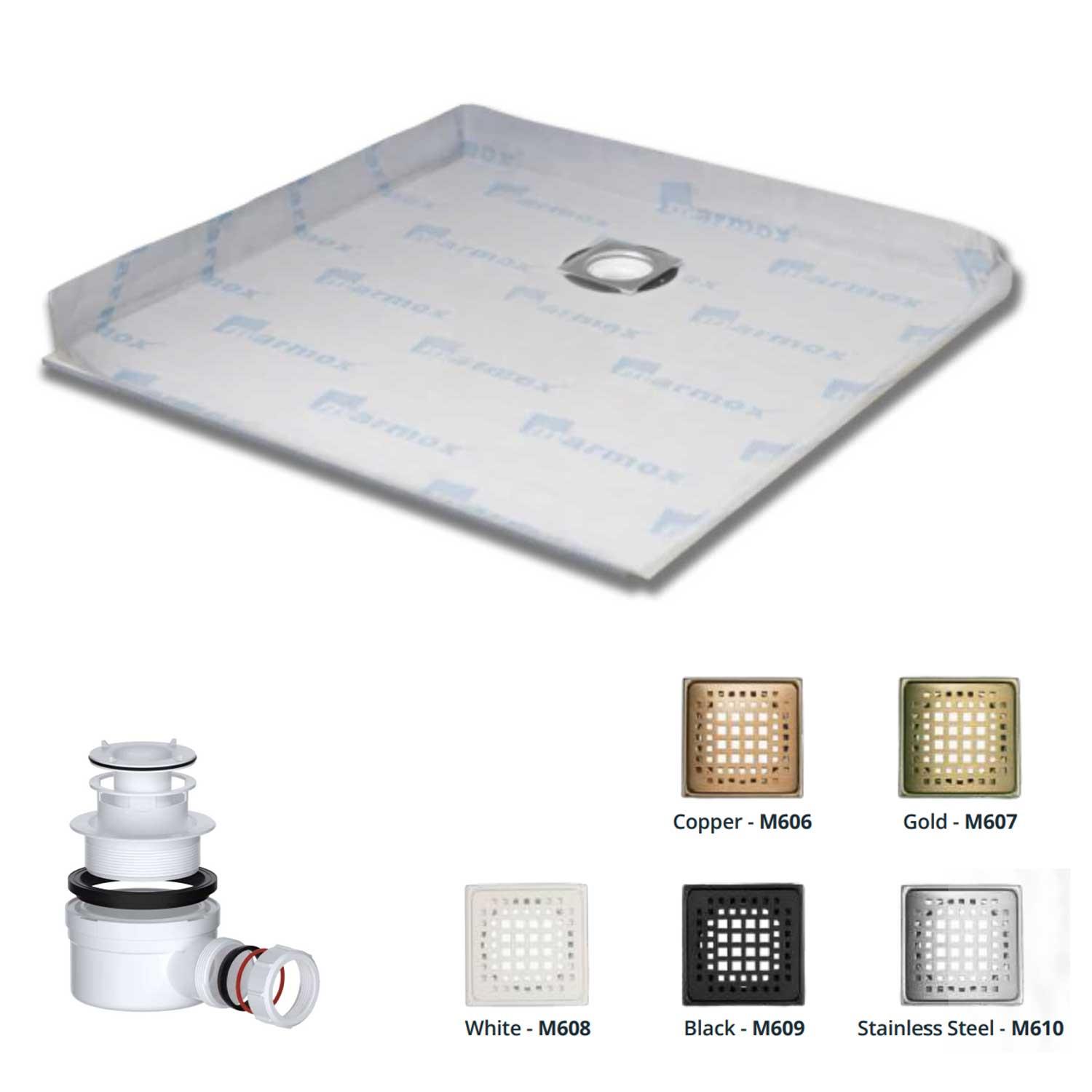

Marmox Showerlay Offset Drain Shower Tray with Grate & Drain

The Marmox Showerlay Offset Drain Shower Tray is a precision-engineered, floor-level shower base designed for modern tiled wetrooms and walk-in showers. Featuring an upgraded easy-access offset drain, new waterproof fleece layer and expanded size range, it delivers reliable drainage, fast installation and long-term performance.

Manufactured from high-density extruded polystyrene and reinforced with Marmox polymer-cement and fibreglass mesh, each Showerlay is fully waterproof, lightweight and ready to tile straight from the box. The offset drain position provides greater layout flexibility while maintaining excellent flow rates.

Key Benefits

  • NEW easy-access offset drain system for improved maintenance
  • NEW factory-applied fleece layer for enhanced waterproofing
  • NEW expanded size range to suit modern wetroom layouts
  • NEW coloured stainless-steel grate options available
  • Supplied complete with grate and Marmox Viva drain
  • Height-adjustable grate for perfect tile alignment
  • Trimmable on all sides by up to 100mm for installation flexibility

Construction & Design

Showerlay units are constructed from high-density extruded polystyrene, precisely shaped to ensure an effective and consistent flow rate to the integrated offset drain. The core is coated on both sides with Marmox’s unique polymer-reinforced concrete and fibreglass mesh, providing excellent strength, durability and tile adhesion.

Technical Details

Code Size (mm) Edge Height
M067 1000 × 1000 22mm
M068 1200 × 1200 22mm
M069 900 × 1200 22mm
M070 900 × 1500 24mm
M071 900 × 1800 28mm

Installation Notes

Each Showerlay is supplied ready to install and can be trimmed by up to 100mm on all sides to accommodate site conditions. The height-adjustable stainless-steel grate allows seamless alignment with thicker tiles, making it suitable for both residential and commercial wetrooms.

What’s Included

  • 1 × Marmox Showerlay Offset Drain Shower Tray
  • 1 × Stainless-steel grate (included in price)
  • 1 × Marmox Viva drain (included in price)

Suitable For

Ideal for tiled wetrooms, walk-in showers and level-access installations where flexibility, reliable drainage and a clean, modern finish are required.

FAQs

Does the Marmox Showerlay Offset tray include the drain and grate?

Yes. Every Marmox Showerlay Offset Drain Shower Tray is supplied complete with one stainless-steel grate and one Marmox Viva drain. Both are included in the price and supplied ready for installation.

What edge height does the Showerlay Offset tray have?

The edge height depends on the tray size. The 1000×1000mm, 1200×1200mm and 900×1200mm trays have a 22mm edge height. The 900×1500mm tray has a 24mm edge height, and the 900×1800mm tray has a 28mm edge height.

Can the Showerlay tray be trimmed to size?

Yes. All Marmox Showerlay trays are trimmable on all sides by up to 100mm, allowing greater flexibility when fitting into alcoves or adapting to on-site conditions.

Is the offset drain height adjustable?

Yes. The stainless-steel drain grate is height adjustable, making it easy to align perfectly with thicker tiles or natural stone finishes.

What material is the Showerlay tray made from?

The core is manufactured from high-density extruded polystyrene and coated on both sides with Marmox’s polymer-reinforced concrete and fibreglass mesh. This provides strength, durability and excellent adhesion for tiles.

Is the Marmox Showerlay Offset tray waterproof?

Yes. The tray is fully waterproof and now features a new factory-applied fleece layer, providing enhanced protection at critical junctions and simplifying the waterproofing process.

What type of installations is this tray suitable for?

The Showerlay Offset Drain tray is ideal for tiled wetrooms, walk-in showers and level-access shower installations in both residential and commercial environments.
